9W LED Edge Lighting
Product Type: Light Boxes Edge Lighting
Product Model: LED Edge Lighting – 9W
Lighting Source: 3pcs LED Chips
Luminous flux: 720Lm
Emitting Colors: Cool white
Application: Specially used in lighting box.
a): The high power LED edge lighting is low heat, the requirement for heat-resistant is not high, perfect for edge-lit illuminated light box and signs;
b): This high power led edge lit modules 9W lits without delay, fast response, and have strong anti-vibration capability;
c): Great quality 9W led edge lights for light boxes with screws hole on the lights, screws and other accessories come with LED edge lighting, Easy installation on lighting boxes;
d): High power led edge lighting 9W emitting with high purity, without lamp filter, optical wavelength error less than 10 nano-meter;
e): Our high power LED edge lighting also has no requirement for reflector, less depth of lamps, and concentrated beam, easy to control, which makes the graphic or information of light box more obvious and attractive;
f): Low power consumption, generate the same luminance only with 6% power consumption as traditional lamps;
g): High power led edge lit modules 9W enjoys long life span, no filament structure, no heating more than five years for normal use;
h): It can be designed as a LED module with 6pcs high power LED Edge Lighting, and then can be used in lighting boxes;
i): Cool white 6500K lighting temperature, other requirements of lighting color customized also available.
The high power LED edge lighting can emitting with high purity, without lamp filter, also can be designed as a LED module with 6pcs high power LED Edge Lighting, specially used in edge-lit illuminated lighting box and signs.
(1): Power adapter;
(2): Wireless remote controller;

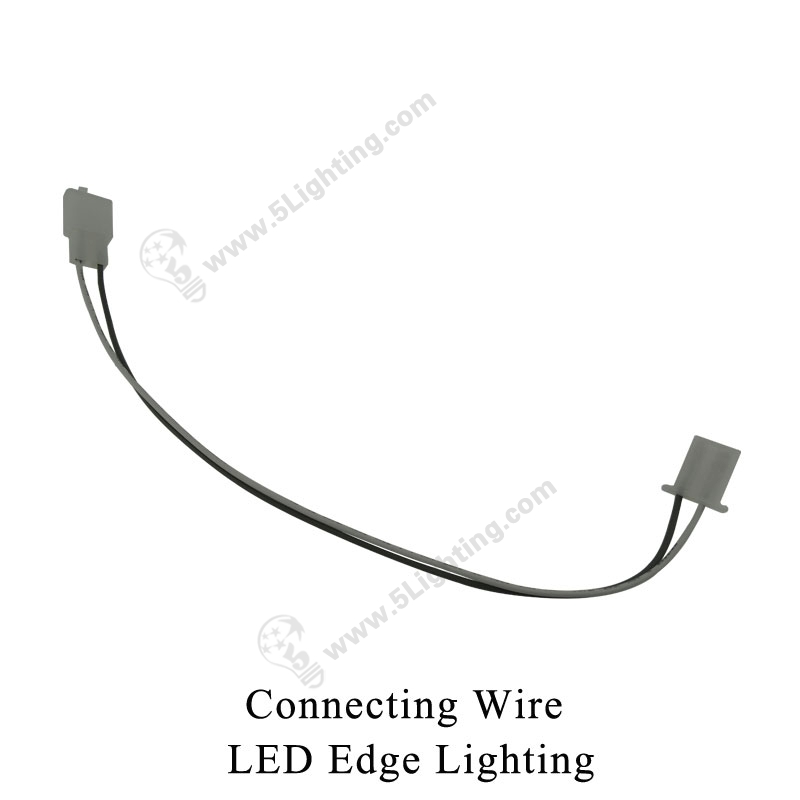

(3): Connect wire;
Great quality high power led edge lighting 9W from 5 Star Lighting Factory!
|9W, 720Lm, 12V/24V, 3pcs Chips, high power light boxes LED edge lighting, Replaces 25W Fluorescent|
|Item Type||Light Boxes Edge Lighting|
|Electrical and optical parameter|
|Model Number:||LED Edge Lighting- 9W|
|LED QTY:||3 leds/pc|
|Max Run2||8 fixtures|
|Mounting||2 mounting holes(5mm diameter)|
|Mounting screws and brackets included|
|Item color:||Cool White|
|Lighting Temperature(℃):||6500K, other color temperature can be customized|
|Application:||Specially used in lighting box|
|Unit Light size(Inch):||10 Inch (L) ×1 Inch (W) ×2/4 Inch (H)|
|Interior box dimension (Inch):||10 1/4 Inch (L) ×1 1/4 Inch (W) ×1 Inch (H)|
Installation instrutions in lighting Boxes:
Do you want to make you light boxes more attractive and colorful?
Know more about Light Boxes With LED Display & LED Edge Lighting for Light Boxes Display Project
