Back-lit lattice strip light is great choice for large light box , show case, display cabients …
This LED curtain lights are specially designed for replacing fluorescent t5 tubes ( 15 Watts ) but 60% energy saving up .
One piece of advice is the
distance of each two of led lattice lights should be narrower than diffuser plate :
the space distance between strips is 100 mm;
the distance from curtain led strips to graphics should be 100 mm obove like 150 mm , 200 mm …
Following is one of our projects we used for led curtain strips :

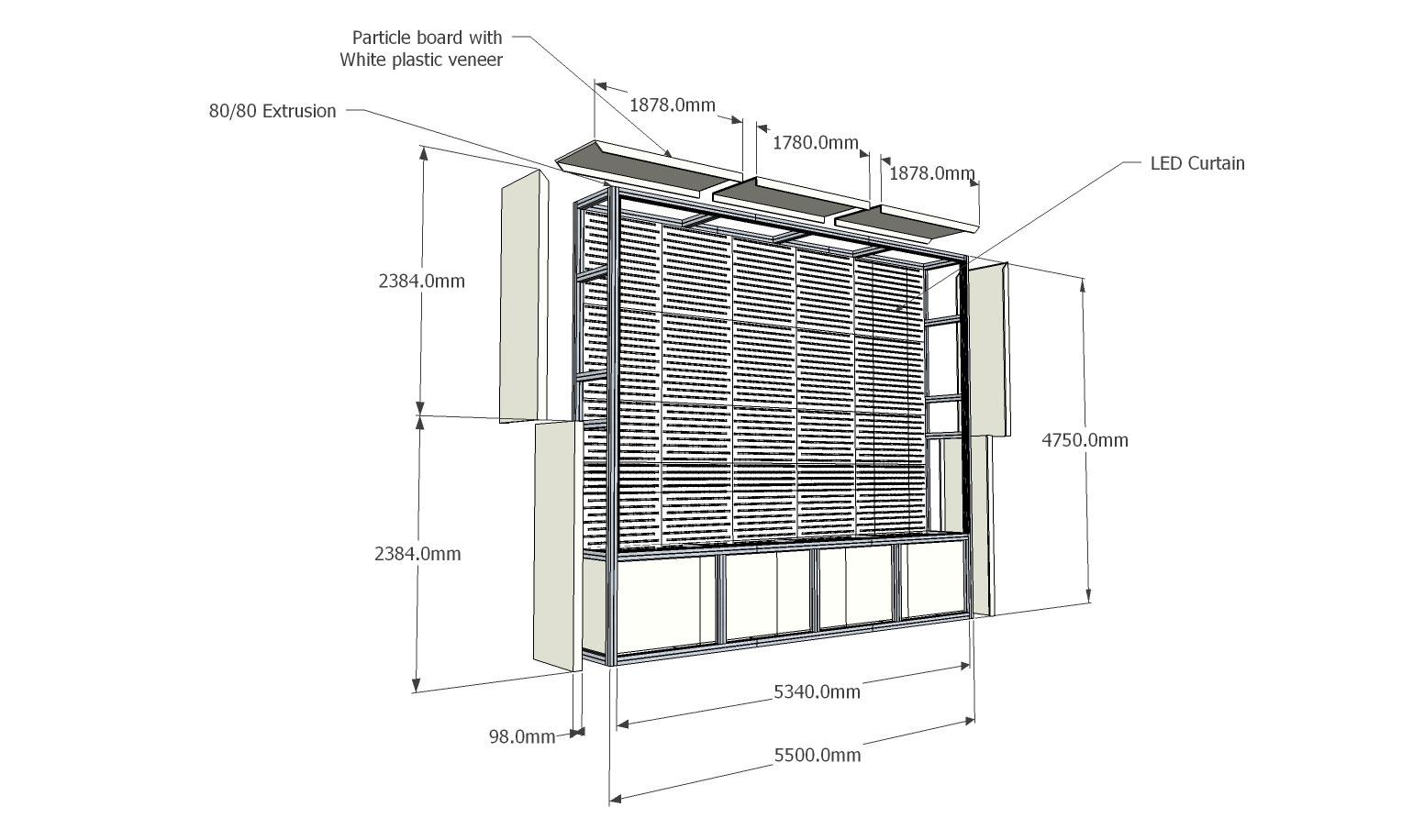

This is a wooden show cabinets used for a expo booth display .
The total size is :
5500 mm (L) x 4750 mm (H) x 300 mm (D) ;
Illumination area sparce is :
5300 mm (W) x 3500 mm (H)
Using led curtain lighting sources .

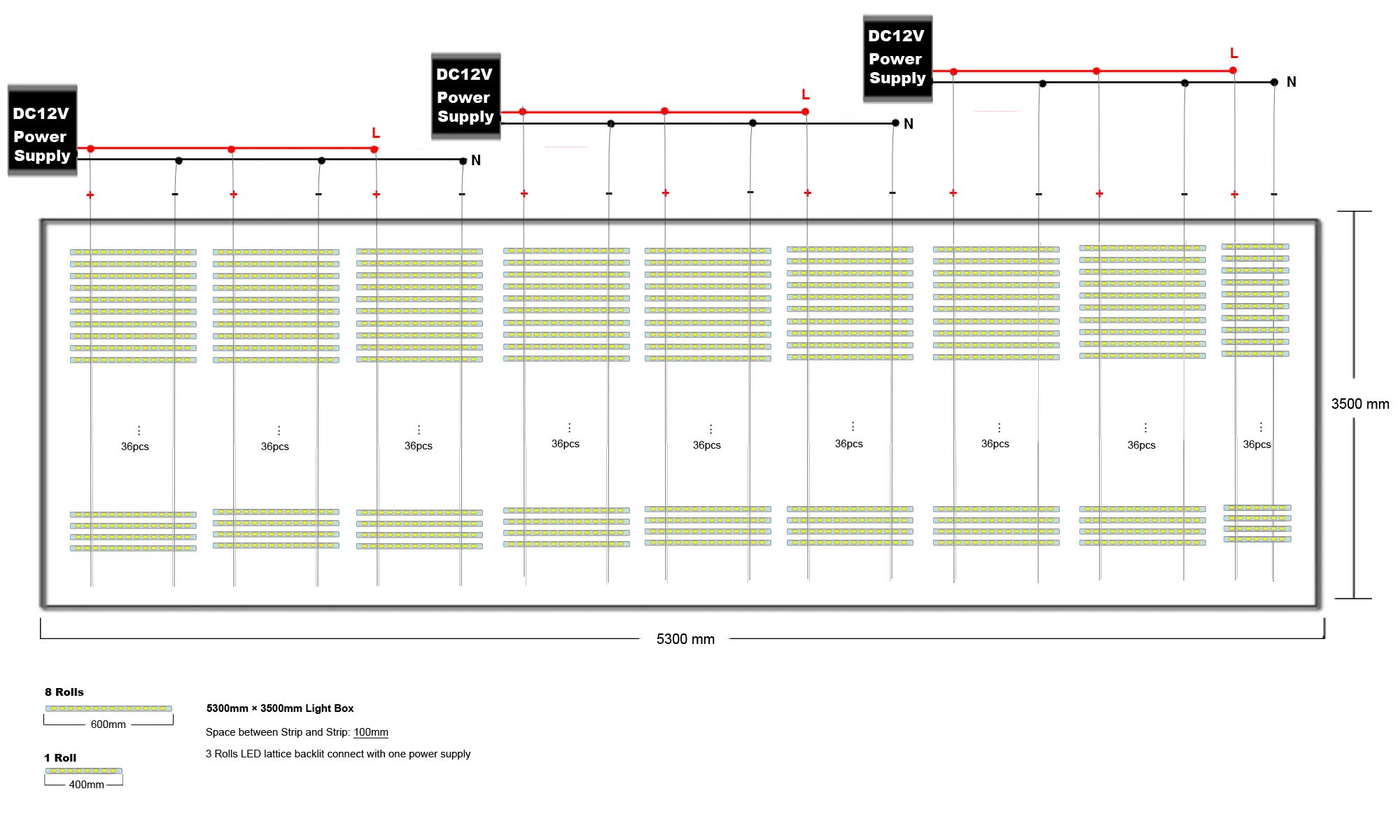

BOM list for ladder led lighting detais for this show case as following :
(1) 60 cm length X 72 pcs / Roll , LED Lattice Strip Light (Distance between two strips is 5cm) 220W ,6000K , Quantity 8 Rolls ;
(2) 40 cm length X 72 pcs / Roll ,LED Lattice Strip Light (Distance between two strips is 5cm) 145W, 6000K, Quantity 1 Roll;
(3) 500 W Iron Switch power supply, Quantity 5 sets
Our lattice back lit strip lights is using SMD led bulbs , hight quality , low energy , low heat generation, long life 30, 000 hours .
This led back lit lighting is good replacement for traditonal fluorescent tube retrofit .
led curtain back lighting with120 degree angle lighting emits, 12 volt / 24 volts safe voltage input is suitable for signage, cabinet display, show room,
letter … applications .
By using our back lattice lighting, it’s very easy and quick to light up large scale display areas like : 12 meters x 6 meters, 10 meters x 5 meters …

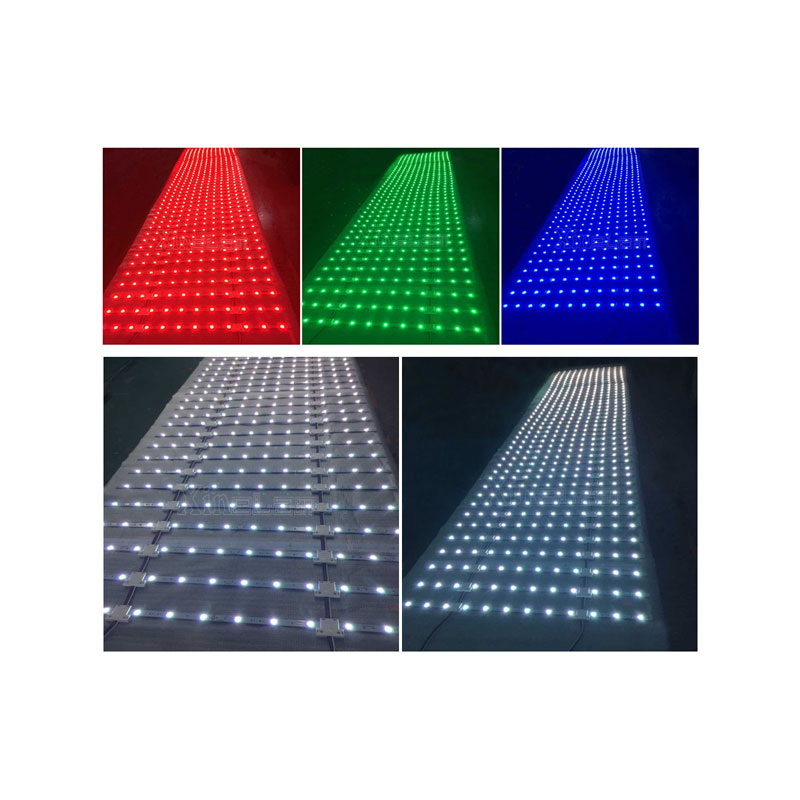

IP 65 water proof for outdoor advertisements or RGB colorful effects can be tailored for this lattice curtain strip lights .
We also have double faces led lattice back lighting for double-sided light boxes uses .
