20W fluorescent replacement
Equals: 20W fluorescent tube
Product Type: LED Tube Lights
Product Model: NT84-1220-JCGW
Base Type: G13
AC input voltage: Electronic Ballast Directly(110V/220V)
Light appearance(CCT):WW(2800-3200K )/CW( 6000-6500K)
Application: Suitable for indoor application.
a): This 4 Feet T8 Smart LED Tube Lights is fully compatible with existing Magnetic & Electronic ballast, easy installation, and no need to rewiring of remove the ballast;
b): Use the high quality aluminum PCB for LED’s better heat dissipation;
c): High-grade PC cover with nice light transmittance (> 95%), Clear PC cover and frosted PC cover are available;
d): Use the most mature international well-known LED SMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay;
e): Eco-Friendly, No mercury, lead or other hazardous materials, no electromagnetic radiation, Emits virtually no UV rays or IR;
f):Wholesale SMART 4 feet LED T8 tube lights direct replace for T8 fluorescent lights. Good quality 4 ft T8 LED tube lighting Factory compatible with electronic ballasts, NO rewiring, NO need to call a maintenance worker !
This 4 Feet T8 Smart LED Tube Lights is fully compatible with existing Magnetic & Electronic ballast, easy installation, and no need to rewiring of remove the ballast, has been widely used in many kinds of indoor scenes, Such as:
(1): Household Usage: Living room, Sitting room, Bedroom, Dining room, Schoolroom etc.
(2): Commercial Usage: Office, Meeting room, Restaurant, Emporium, Shopping mall, cabinet, workshop etc.
(3): Other Indoor Usage: Hospital, School, Domitory, Corridor, Subway, Underground parking lot, Bus, Station etc.
New designed led tube lights, with compatible power supply inside, Easy installation, only four steps done:
1. Turn off the power;
2. Remove fluorescent tube;
3. Plug-in direct replacement LED Tube;
4. Turn on the power.

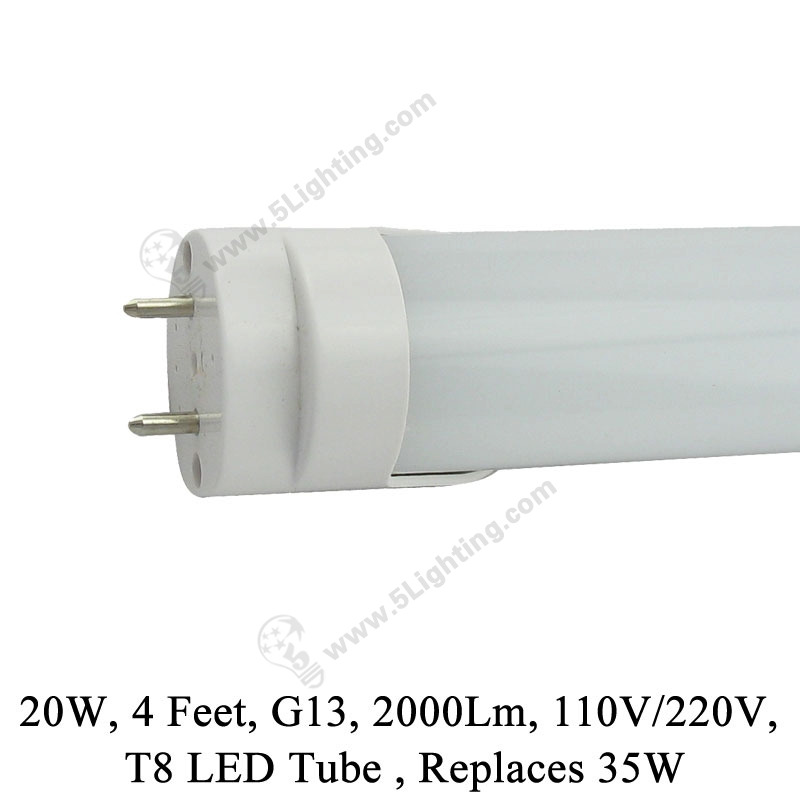

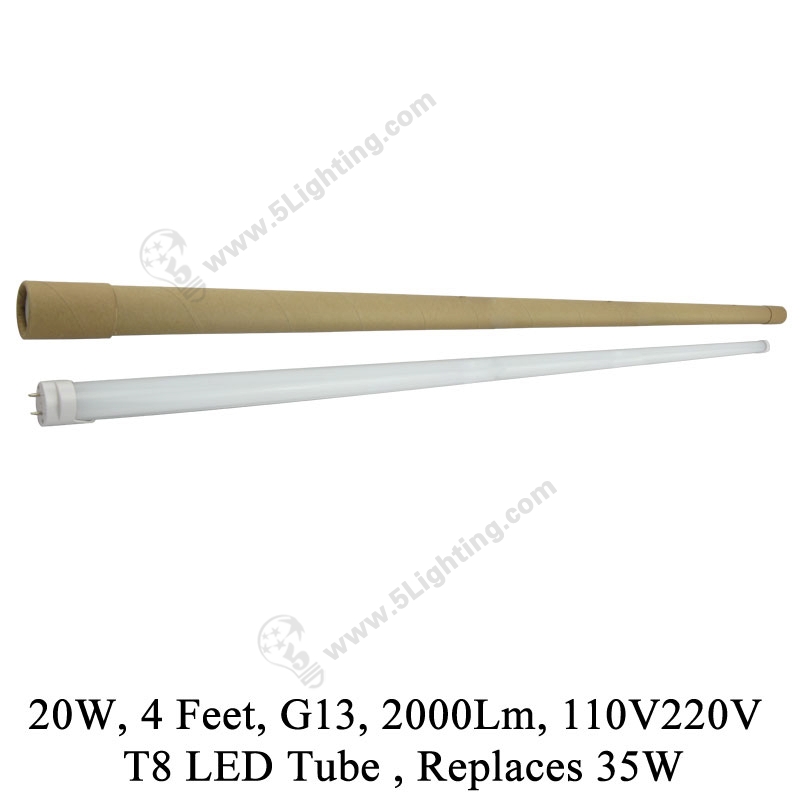

|20W, 4 Feet, G13, 2000Lm, T8 smart LED tube lights, Replaces 35W Fluoresent Tube Directly|
|Item Type:||LED Tube Lights|
|Electrical and optical parameter|
|Power Consumption:||20 W|
|Replacement :||35W T8 Fluoresent Tube|
|Light Appearance (CCT):||WW(2800-3200K )/CW( 6000-6500K)|
|Input voltage:||Electronic Ballast Directly(110V/220V)|
|Lamp Luminous Efficiency (lm/w) :||100Lm/W|
|Color rending index CRI (Ra>):||>80 Ra|
|Lighting source:||0.2W SMD2835 192PCS Epistar chip|
|RGB Color Available:||NO|
|Working Temperature(℃):||-20 – 60℃|
|Lifespan((based on 4 hrs/day)||20 years|
|Unit Net Weight(lb)/[g]||1.0(lb)/454(g)|
|Unit Light size(Inch):||Φ1 Inch x 47 1/4 Inch (L)|
|Unit Gross Weight(lb) /[g]:||1.21(lb)/550(g)|
|Interior box dimension (Inch):||Φ: 1 1/4Inch x 47 3/4Inch (L)|
