T8 Smart LED Tube Lights – 5 Feet

Features:

a): This 5 Feet T8 Smart LED Tube Lights is fully compatible with existing Magnetic & Electronic ballast, easy installation, and no need to rewiring of remove the ballast;

b): Use the high quality aluminum PCB for LED's better heat dissipation;

c): High-grade PC cover with nice light transmittance (> 95%), Clear PC cover and frosted PC cover are available;

d): Use the most mature international well-known LED SMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay;

e): Eco-Friendly, No mercury, lead or other hazardous materials, no electromagnetic radiation, Emits virtually no UV rays or IR;

f):Wholesale SMART 5 feet LED T8 tube lights direct replace for T8 fluorescent lights. Good quality 5 ft T8 LED tube lighting Factory compatible with electronic ballasts, NO rewiring, NO need to call a maintenance worker !

Application:

This 5 Feet T8 Smart LED Tube Lights is fully compatible with existing Magnetic & Electronic ballast, easy installation, and no need to rewiring of remove the ballast, has been widely used in many kinds of indoor scenes, Such as:

(1): Household Usage: Living room, Sitting room, Bedroom, Dining room, Schoolroom etc.

(2): Commercial Usage: Office, Meeting room, Restaurant, Emporium, Shopping mall, cabinet, workshop etc.

(3): Other Indoor Usage: Hospital, School, Domitory, Corridor, Subway, Underground parking lot, Bus, Station etc.

Installation Instructions:

New designed led tube lights, with compatible power supply inside, Easy installation, only four steps done:
1. Turn off the power;
2. Remove fluorescent tube;
3. Plug-in direct replacement LED Tube;
4. Turn on the power.

Brief Discription

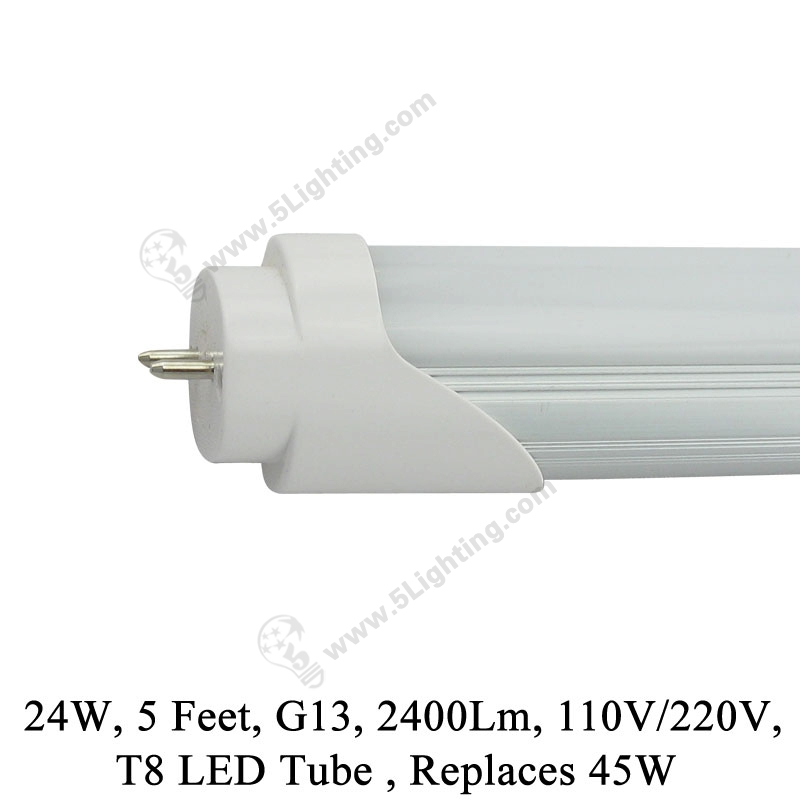

24W, 5 Feet, G13, 2400Lm, T8 smart LED tube lights, Replaces 45W Fluoresent Tube Directly
Item Type:	LED Tube Lights
Model Number:	NT84-1524-JCGW
Electrical and optical parameter
Power Consumption:	24 W
Replacement :	45W T8 Fluoresent Tube
Base Type:	G13
Item Color:	White
Materials:	Aluminum+PC
Brightness:	2400Lm
Light Appearance (CCT):	WW(2800-3200K )/CW( 6000-6500K)
Input voltage:	Electronic Ballast Directly(110V/220V)
Beam angle:	150°
Application Area:	Indoor
Lamp Luminous Efficiency (lm/w) :	100Lm/W
Color rending index CRI (Ra>):	>80 Ra
Lighting source:	0.2W SMD2835   240PCS   Epistar chip
Power factor(PF):	95%
Dimming:	NO
RGB Color Available:	NO
Working Temperature(℃):	-20 - 60℃
Warranty:	3 years
Lifespan((based on 4 hrs/day)	20 years
Packing dimension
Unit Net Weight(lb)/[g]	1.10(lb)/500(g)
Unit Light size(Inch):	Φ1 Inch x 59 Inch (L)
Unit Gross Weight(lb) /[g]:	1.32(lb)/600(g)
Interior box dimension (Inch):	Φ: 1 1/4Inch x 59 3/4Inch (L)
