Replaces fluorescent troffer lights
Product Type: LED Panel Lights
Product Model: PL-36W-66-28-TG-01
Lighting Source: Epistar SMD 2835
AC input voltage: AC100-277V
Power: 36W
Brightness: 110-120Lm/W
Application: Suitable for indoor decoration applications.
Features:
a): Wholesale this ultra thin design led panel lights 2×2 with elegant appearance, lamp-body thinner and lighter, large lighting area, it’s creativity make it enjoy a great popularity in worldwide market;
b): Great quality flat panel led lights square using aluminum and high quality PMMA materials as shell’s material, this superior performance affects excellent heat dissipation that can last a long time life span more than 50,000 hours;
c): Our led ceiling panel light 2×2 adopts 192pcs Epistar SMD 2835 LED chips as lighting source, super bright with but with low power consumption, this led panel lighting is completely energy-saving and eco-friendly;
d): This led square flat panel light 603mm×603mm is featured with 120 degree wide beam angle, which make this panel led lights emits much more pure and uniform lighting than others, it brings great illuminating effects;
e): Unique item flat panel led lights square available for 0-10V dimmable, convenient for customers to control and use;
f): Humanized design led ceiling panel light provide 1ft × 1ft / 1ft × 2ft / 1ft × 4ft / 2ft × 2ft / 2ft × 4ft this five sizes for options, customers can choose according to lighting requirements;

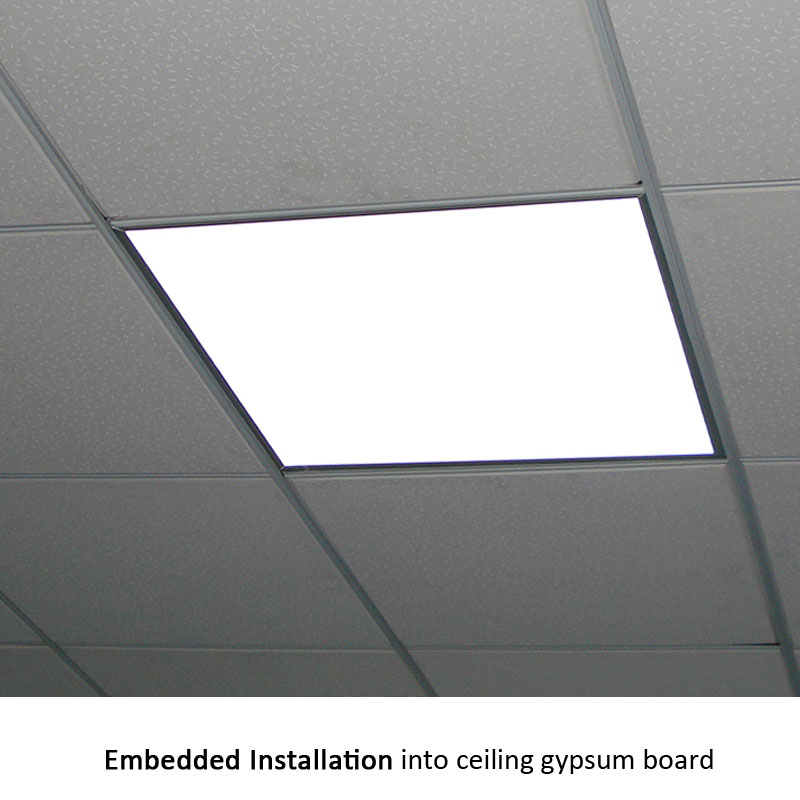

g): Super bright dimmable led panel light fixture is pretty easy for installation; there are three installation methods that completely meet customers’ necessary: Ceiling Installation / Embedded Installation / Vertical Installation;
h): Dimming controller sold separately here.

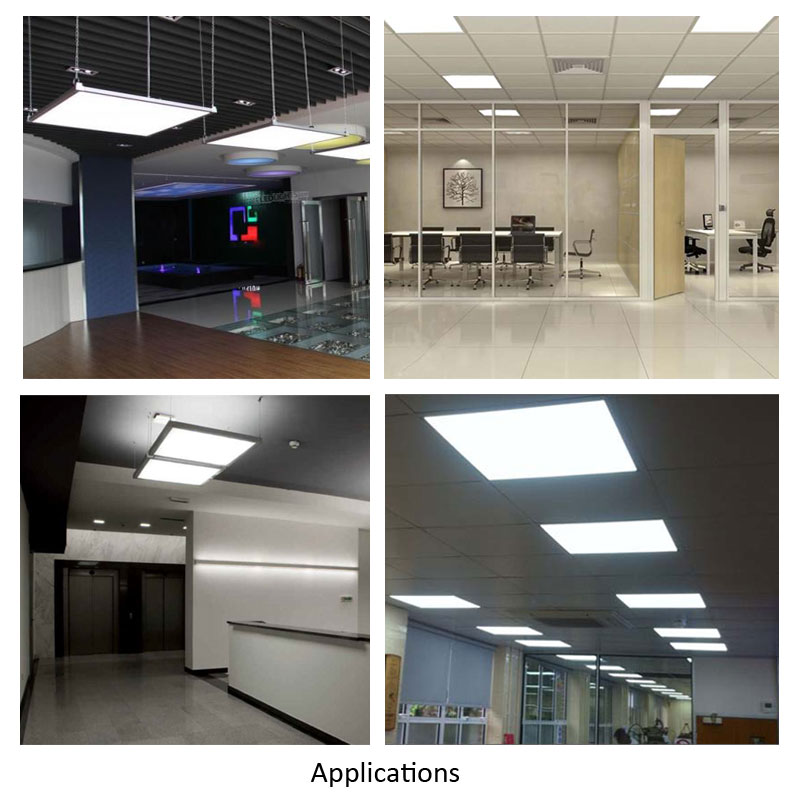

Applications:
Factory direct sale LED panel lights 2×2 featured with ultra thin design that make it easy to installation, energy saving and with excellent illuminating effects, it has been widely adopted in various kinds of scenes:
[1]: Household Application: Living room, Kitchen, Schoolroom, Dinner room, Ceiling Lighting etc.
[2]: Commercial Application: Office, Meeting room, Showroom, Factory, Workshop, Store, Supermarket, Hotel, Restaurant, etc.
[3]: Other Indoor Application: Museum, School, Hospital, Parking lots etc.
Great quality LED panel lights 2×2 from 5 Lighting Factory!
Brief Descriptions | |
LED Panel Lights 2×2, Square Ceiling Panel Light, 36W, AC100-277V, 120°beam angle, Dimmable Flat Panel LED Lights. | |
Item Type: | LED Panel Lights |
Model Number: | PL-36W-66-28-TG-01 |
Electrical and Optical Parameter | |
Replacement: | Replaces fluorescent troffer lights |
Item Color: | White + Grey |
Shell materials: | Aluminum & High quality PMMA |
Lighting source: | Epistar SMD 2835 |
LED quantity: | 192pcs LEDs |
Power Consumption: | 36W |
Brightness: | 110-120Lm/W |
Input voltage: | AC100-277V |
Color rending index (CRI): | Ra ≥ 80 |
Power factor: | PF ≥ 0.95 |
THD: | THD < 15% |
Dimming: | 0-10V Dimmable |
Beam angle: | 120° |
IP grade: | IP44 |
Light Appearance (CCT): | Warm White (3000-3500K); Pure White(4000-4500K); Cool White(5000-5500K) (6000-6500K). |
Operating temperature(℃): | -20℃-45℃ |
Certifications: | CE / RoHS / SAA / UL |
Warranty: | 3 years |
Lifespan((based on 4 hrs/day): | 50,000hrs |
Packing dimension | |
Unit Net Weight(lb)/[g] | 8.16(lb)/3700(g) |
Unit Light size(Inch): | L: 23 3/4 Inch x W: 23 3/4 Inch |

Factory direct panel led lighting with various sizes
More details, Please refer to Here
or Link below :

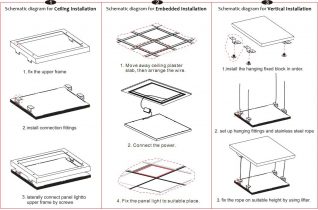

Three ways to quickly install LED panel light 2' X 2'
More details, Please refer to Here
or Link below :
