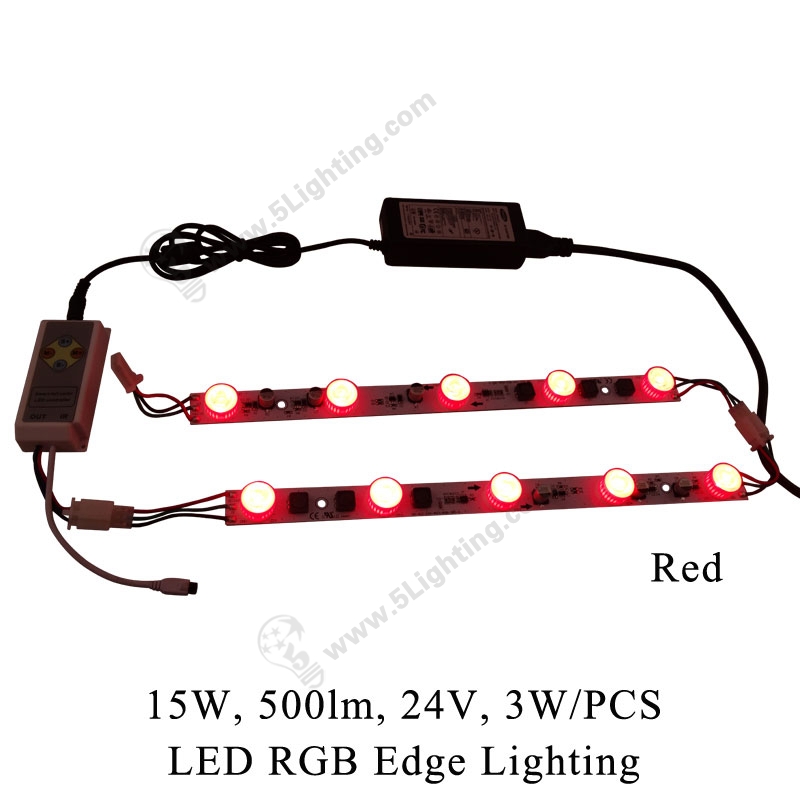

15W LED RGB Edge Lighting
Product Type: Light Boxes Edge Lighting
Product Model: LED RGB Edge Lighting – 15W
Lighting Source: 5pcs LED Chips
Input voltage: 12V/24V
Luminous flux: 500Lm
Emitting Colors: Green, Red, Yellow, Pink, Blue, Purple
Application: Specially used in lighting box.
a): Wholesale this high power LED edge lighting is low heat, the requirement for heat-resistant is not high, perfect for edge-lit illuminated light box and signs;
b): This high power led edge lighting 18W lits without delay, fast response, and has strong anti-vibration capability;
c): Good quality high power led edge lit modules 18W with screws hole on the lights, screws and other accessories come with LED edge lighting, easy installation on lighting boxes;
d): Emitting with hight purity, without lamp filter, optical wavelength error less than 10 nano-meters;
e): Our 18W led edge lights for light boxes also has no requirement for reflector, less depth of lamps, and concentrated beam, easy to control, which makes the graphic or information of light box more obvious and attractive;
f): Low power consumption, generate the same luminance only with 6% power consumption as traditional lamps;
g): The high power led edge lit modules with long life span, no filament structure, no heating more than five years for normal use;
h): Excellent brightness led edge lights for light boxes can be designed as a LED module with 6pcs high power LED Edge Lighting, and then can be used in lighting boxes;
i): Cool white 6500K lighting temperature, other requirements of lighting color customized also avalible;
The high power LED edge lighting can emitting with high purity, without lamp filter, also can be designed as a LED module with 6pcs high power LED Edge Lighting, specially used in edge-lit illuminated lighting box and signs.
(1): Power adapter;
(2): Wireless remote controller;
(3): Connect wire;
Great quality high power led edge lighting 18W from 5 star lighting factory!
|15W, 500Lm, 12V/24V , 5pcs Chips, With wireless remote controller, high power LED RGB light boxes edge lighting|
|Item Type||Light Boxes Edge Lighting|
|Electrical and optical parameter|
|Model Number:||LED RGB Edge Lighting – 15W|
|LED QTY:||5 leds/pc|
|Lamp bead (center) spacing:||3 1/4 Inch|
|Max Run2||5 fixtures|
|Mounting||2 mounting holes(5mm diameter)|
|Mounting screws and brackets included|
|Emitting color:||Red, Yellow, Pink, Green, Blue, Purple etc.|
other color temperature can be customized
|Working temperature(℃):||-20℃ ~50℃ 30%-70%|
|Storage condition||-20℃ ~70℃ 30%-70%|
|Application:||Specially used in lighting box|
|Unit Light size(Inch):||14 1/4 Inch (L) ×1 Inch (W) ×2/4 Inch (H)|
|Interior box dimension (Inch):||14 3/4 Inch (L) ×1 1/4 Inch (W) ×1 Inch (H)|
Installation instrutions in lighting Boxes:
This RGB LED Edge Lighting has several modes for color or swithing speed changing, Effects as the video shows:
RGB LED Edge Lighting - Effect 1

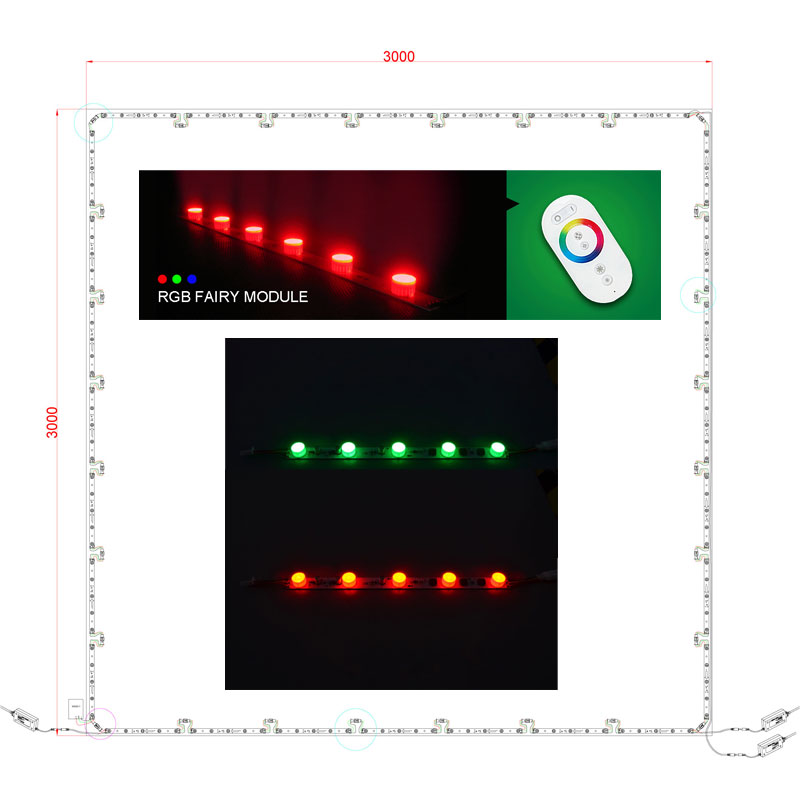

Colorful LED Edge-lit lighting system for light boxes, neat & compact
