Today we are discussed about connection methods for Integrated T5 Led tubes .
Three Methods for connection Integrated led tube T5 lights .
(1) Single T5 tube with one power cable plug ,
this is used for places where don't need to connect several t5 tube lights together .
Just one light one cable .
it's the simplest circumstance we using led tubes .
- Connector with naked wire
- Connect with switch on /off power cord
(2) Using connection cables wires ,
The standard length cable cords can be 20 cm , 30 cm , 50 cm ... Customized length can be tailored according to different application .
Several Integrated t5 tube lighting can be linked , just one power plug at the end .
We recommend MAX connection tube quantity is no more than 10 pieces .

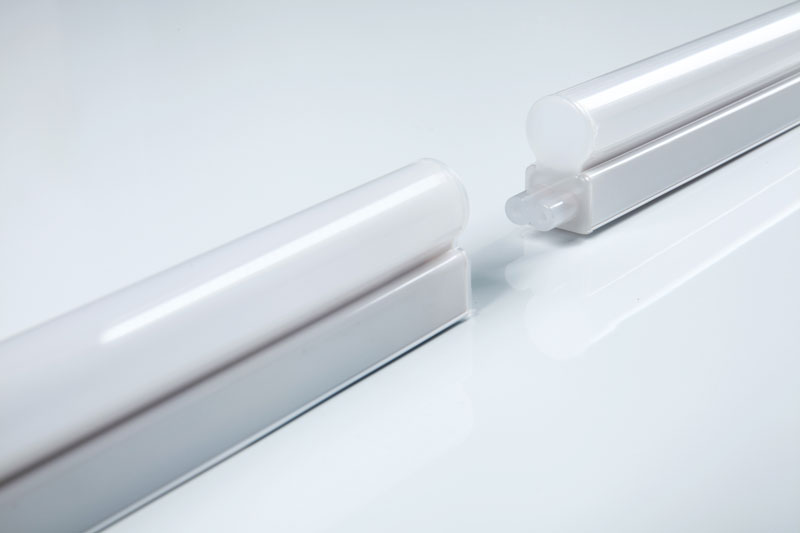

(3) Seamless connecting ,
Integrated LED T5 tubes are daisy chained together one by one with out cable wires .
Some manufacturer will offer seamless connectors ,
some factory will pre-mould male and female connectors into Integrated t5 tubes.
These led tubes are prolonged for several meters , the special optical design keep smoothly lighting up whole space without apparent shadows . This is newest linking solution for Integrated t5 lights .
| CODE | Power (W) | Lumen efficiency | Colour temperature (K) | Lumen (Lm) | RA | Voltage | PF | Cover | LED type | Beam angle(°) | Lifespan (H) |
| 5L-T5-2FT-9W | 9 | 111 | 4000K / 5000K | 1000 | 83 | AC120-277V 50/60Hz | >0.9 | Clear/Frosted | 46*SMD2835 0.2W 421 | 200/120 | 30,000 |
| 140 | 4000K / 5000K | 1260 | 83 | AC120-277V 50/60Hz | >0.9 | Clear/Frosted | 46*SMD2835 0.5W | 200/120 | 30,000 | ||
| 5L-T5-4FT-18W | 18 | 111 | 4000K / 5000K | 2000 | 83 | AC120-277V 50/60Hz | >0.9 | Clear/Frosted | 92*SMD2835 0.2W | 200/120 | 30,000 |
| 140 | 4000K / 5000K | 2520 | 83 | AC120-277V 50/60Hz | >0.9 | Clear/Frosted | 92*SMD2835 0.5W | 200/120 | 30,000 |
5 Star T5 LED Tube Lighting will be your right choice for your office , cabinets, garage , work places ...
Specific parameters
- Illumination Type: LED Integrated T5 Tubes
- Power: 8 Watts - 30 Watts
- Length: 2 ft, 3 ft, 4 ft
- Color Temperature: 2700K - 6500K
- CCT : Warm White / Cool White
- Luminous Flux: 800 Lm - 3000 Lm
- Input Voltage: AC 85-265V
- Beam Angle: >160°
- Frequency(Hz): 50-60HZ
- Service Life: 30,000+ rated hours
We can customized t5 tube solution for whatever Integrated or separated type .
